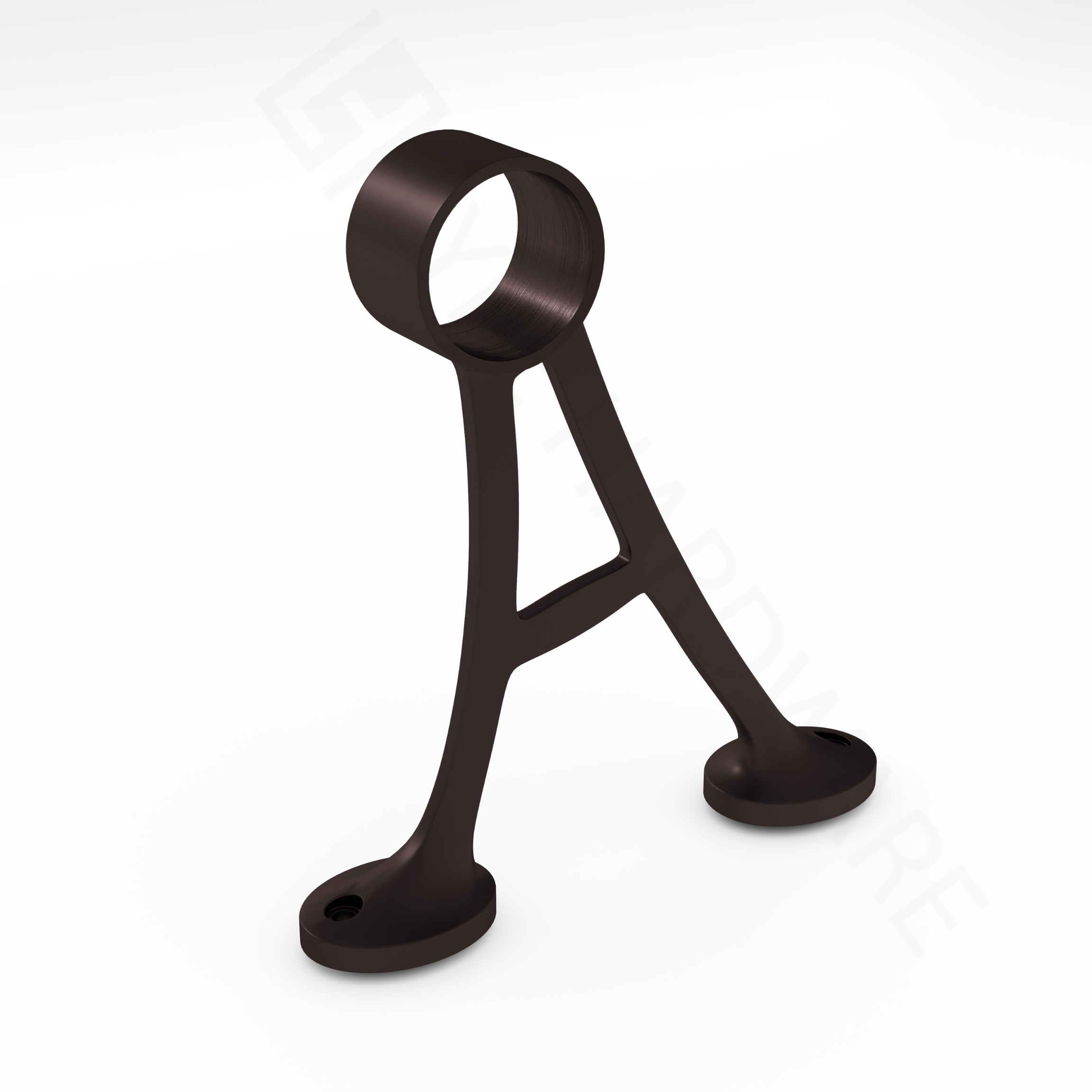

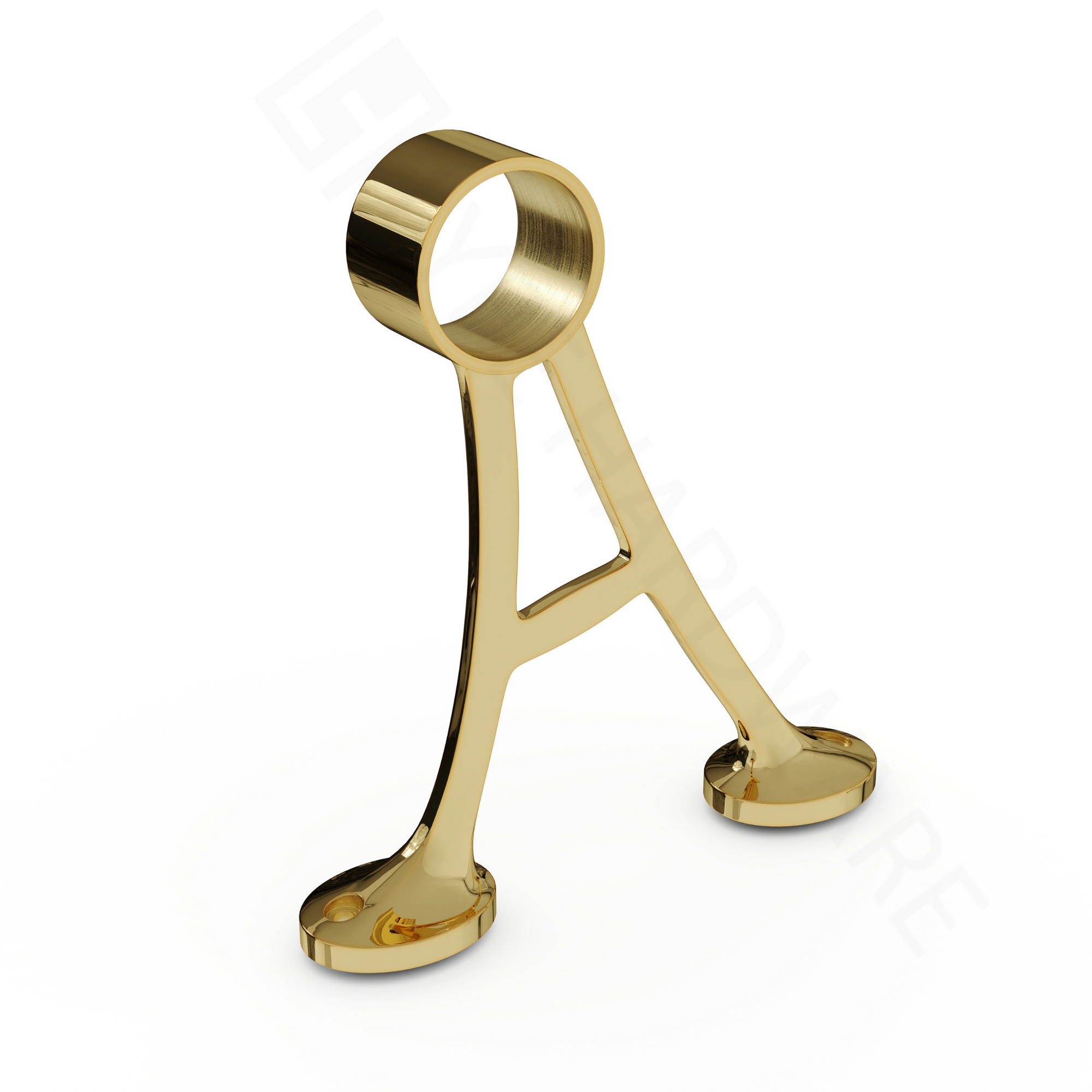

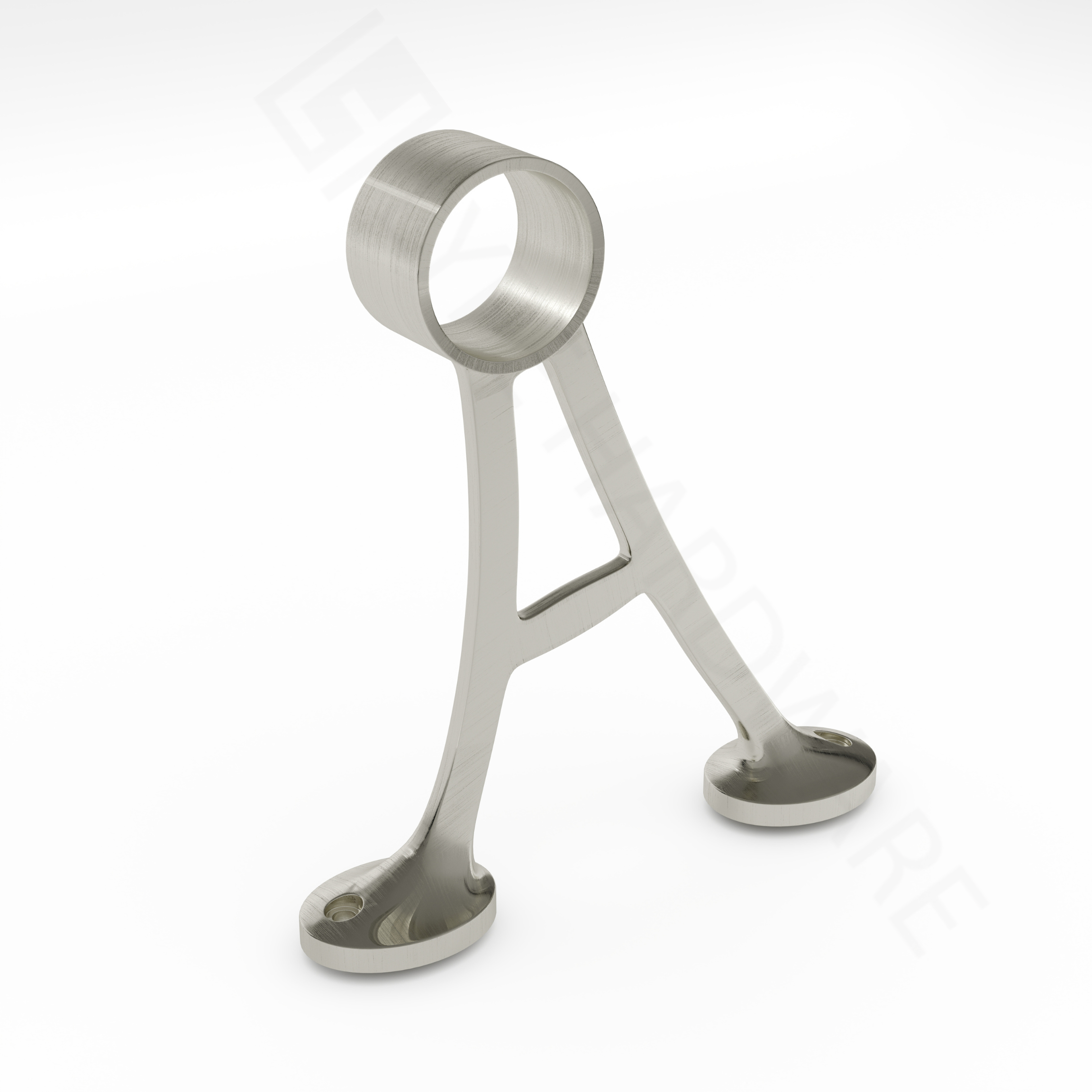

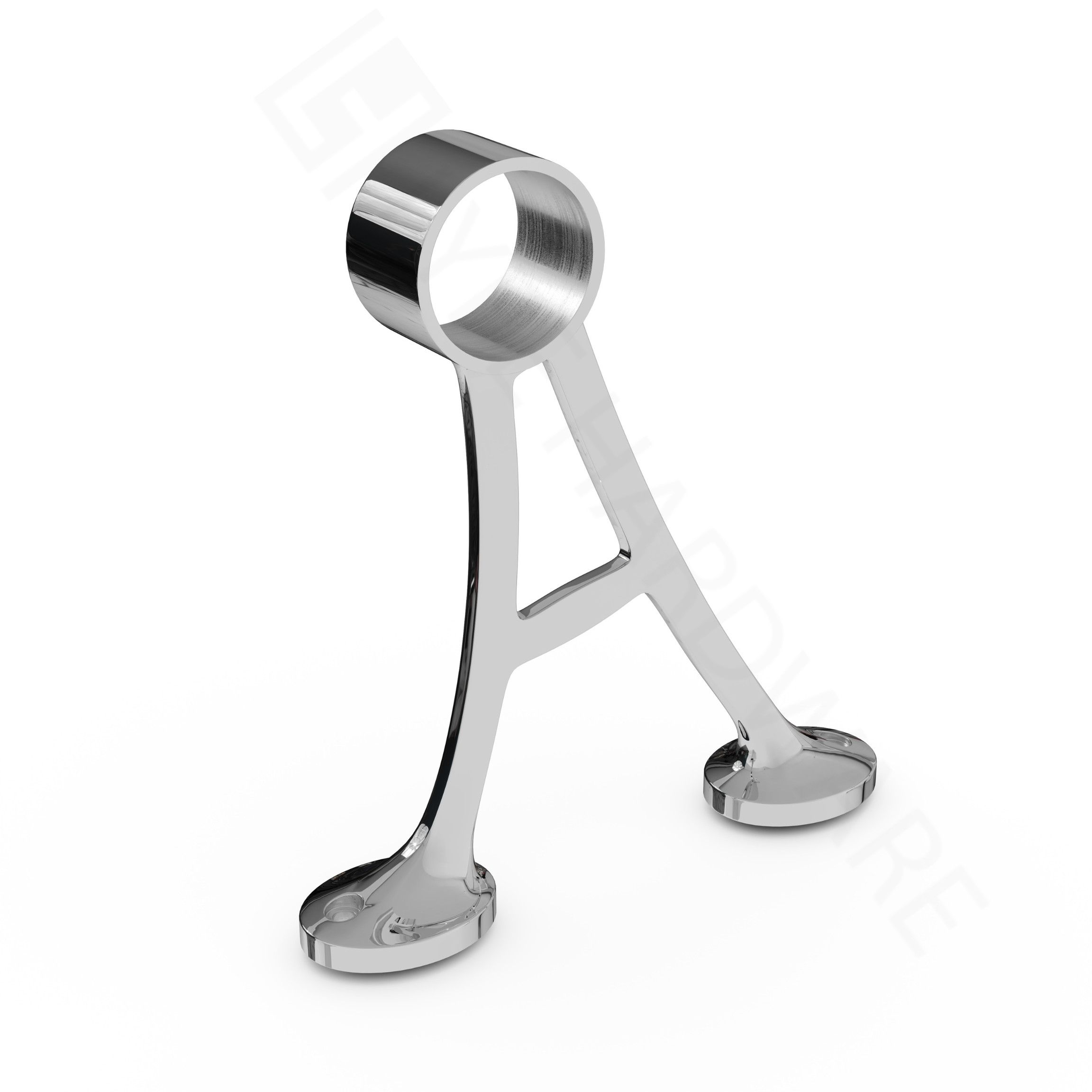

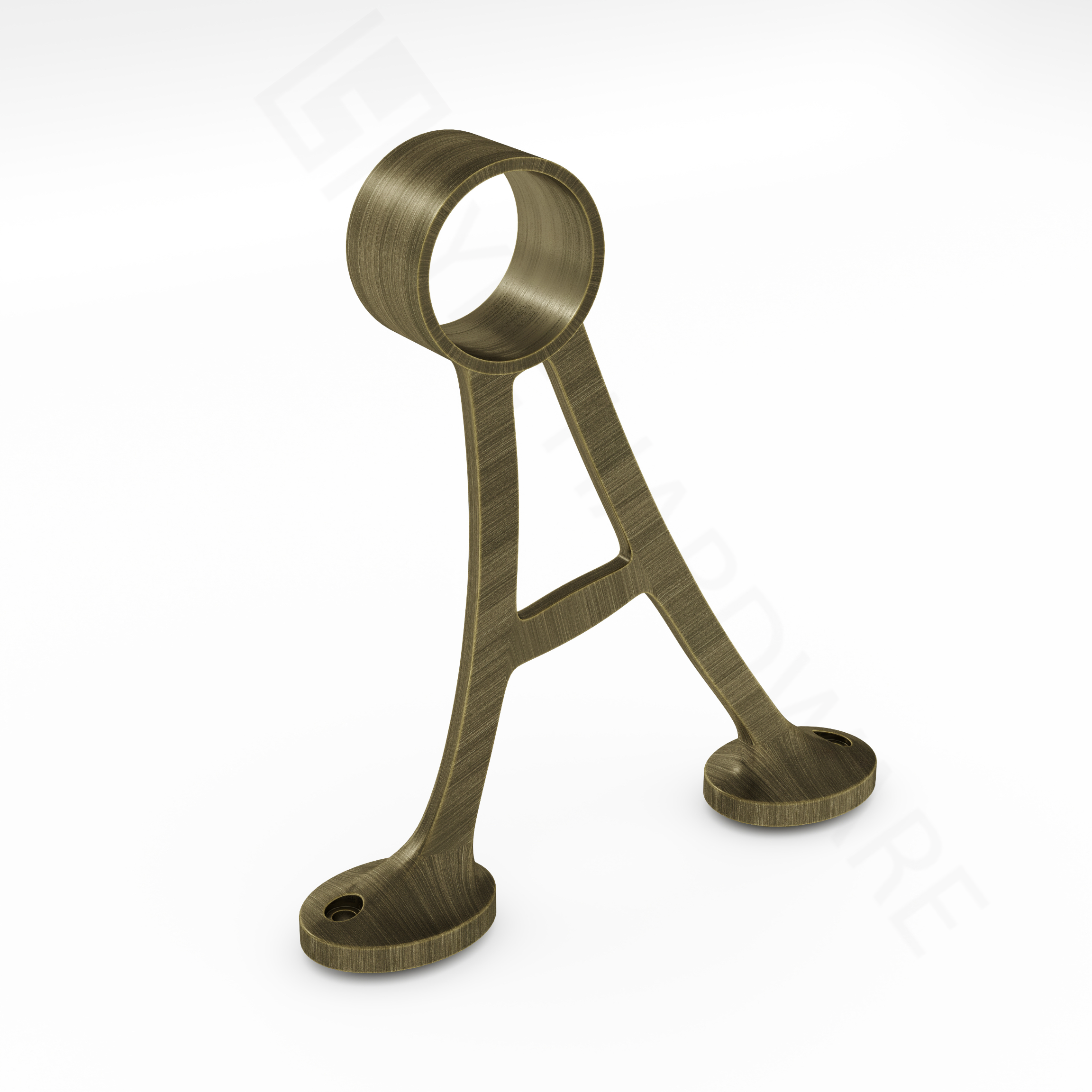

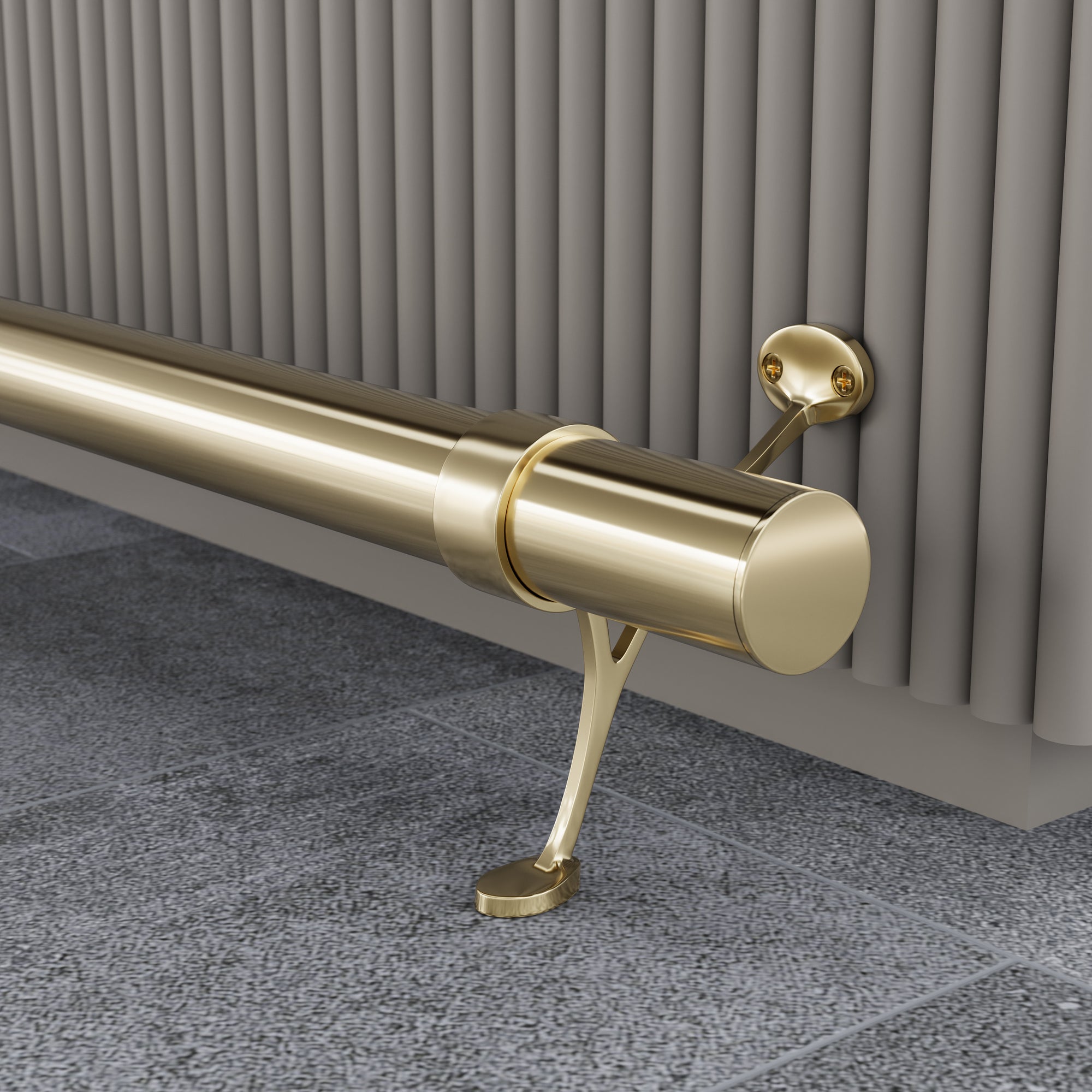

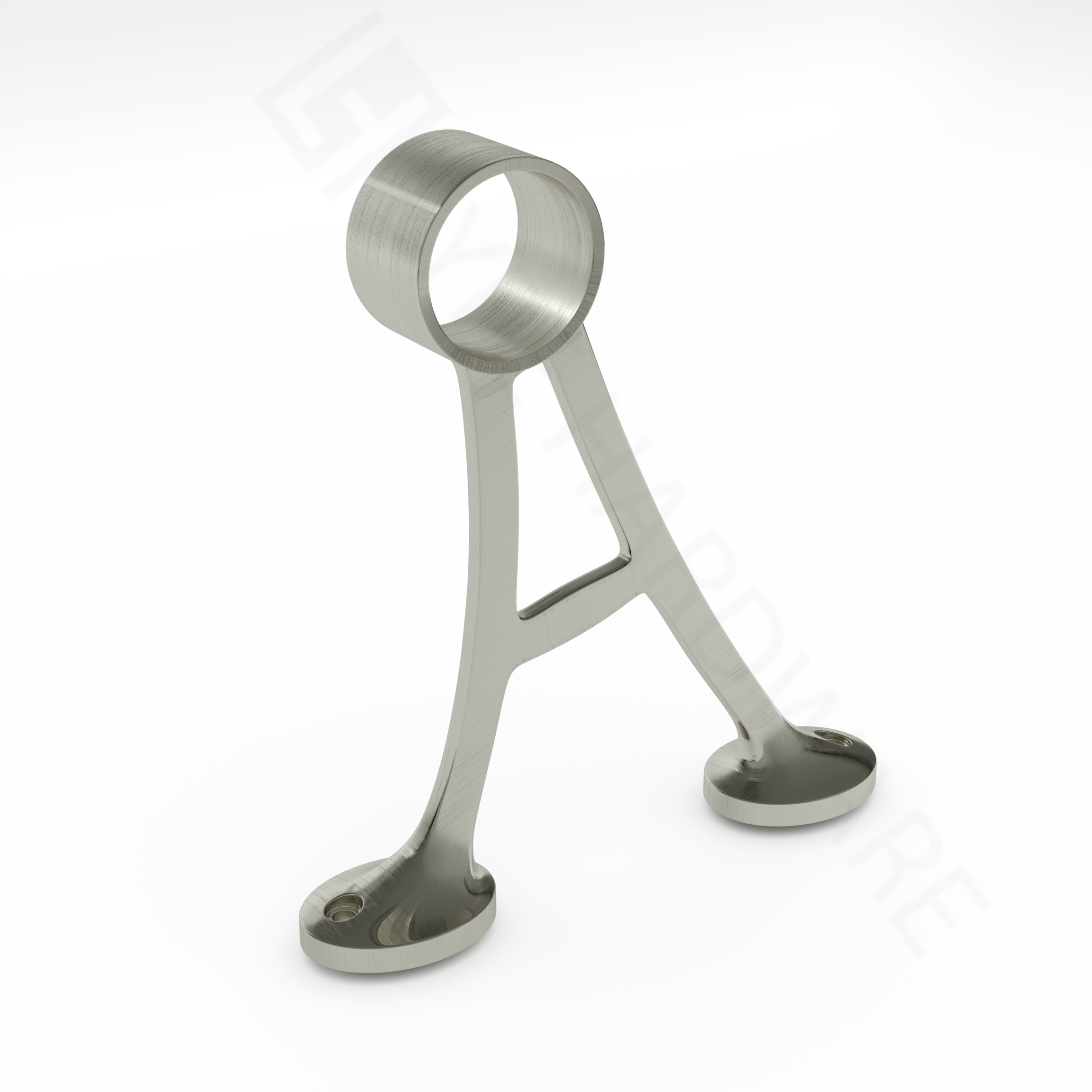

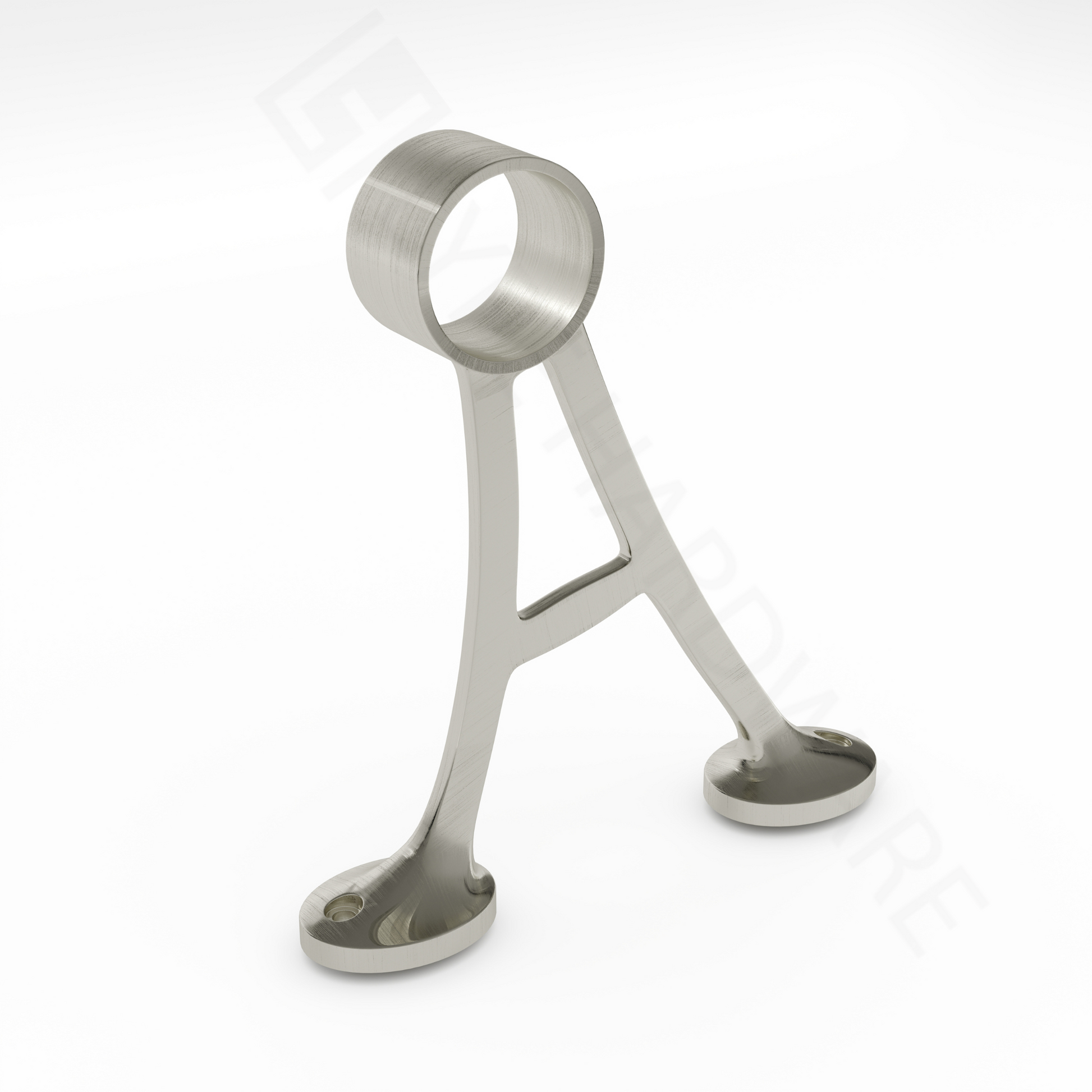

Floor-Mounted Foot Rail Brackets are the perfect solution if you prefer not to drill into your bar face or if it can’t support the weight of a foot rail. Mounted directly to the floor with two sturdy supports, these brackets provide reliable stability for long-term use.

One of the standout features of floor-mounted brackets is the flexibility they offer. You can choose how close or far you want your foot rail to be from your bar, and even adjust it to lean towards or away from the bar while maintaining strong support.

Crafted from premium metals and available in different sizes and finishes, these brackets seamlessly blend with any bar décor. For optimal support, we recommend placing brackets at each end of your foot rail and at regular intervals along its length. Be sure to measure precisely where to place the screws before installation.

Installation is straightforward: secure the two feet of the bracket directly into your floor using the included mounting hardware. This design ensures a stable and durable setup that holds up well under heavy use.

Features
• Made from premium metals
• Available in different sizes and finishes
• Flexible placement allows customization of foot rail position
• Includes all necessary mounting hardware

Installation Instructions

1. Measure & mark holes for mounting screws.
2. Drill holes in the floor.
3. Attach brackets to the floor with the mounting screws.
4. Secure tubing to bracket by fastening set screw through the hole in the bottom.

For 38mm(1.5" OD)

• Bracket Width: 160mm(6.31”)
• Bracket Height: 175mm( 6.88”)
• Opening Diameter: 37mm(1.52” )(for 1.5” OD tubing)
• Floor to Center of Tubing (Vertical Center Point): 152mm(6.00”)

Tech Specs 38mm(1.5")

For 51mm(2" OD)

• Bracket Width: 170mm(6.69”)
• Bracket Height: 184mm(7.23”)
• Opening Diameter: 51mm(2.01”) (for 2” OD tubing)
• Floor to Center of Tubing (Vertical Center Point): 156mm(6.13”)

Tech Specs 51mm(2")

Includes

• 2pcs - #12 x 2” PFH Mounting Screw
• 1pc - #8 x ¾” Self-Drilling Set Screw

Care & Maintenance

The care required for your bar foot rail will depend on the chosen finish. Over time, you may notice typical wear such as scuffs, scratches, or dirt. To keep your foot rail looking its best, follow our Cleaning & Maintenance Guide, which provides detailed instructions for cleaning and maintaining all finishes.

Please note: Our tubing and components, like brackets and endcaps, might have slight color differences when they arrive. This is completely normal and will even out naturally over time as the brass develops a beautiful patina—a natural process that happens with exposure to air and moisture.
